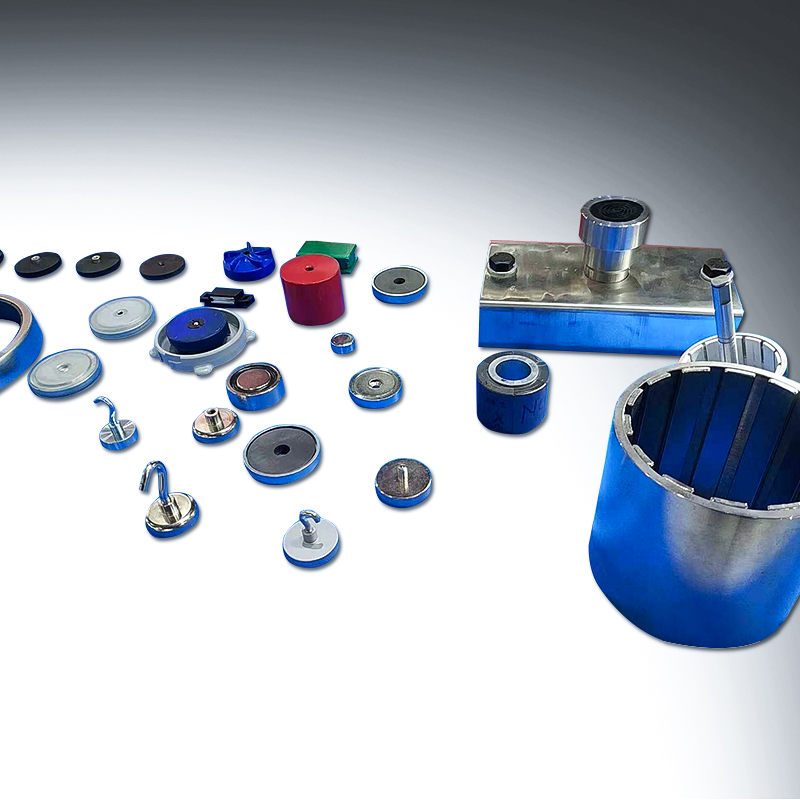

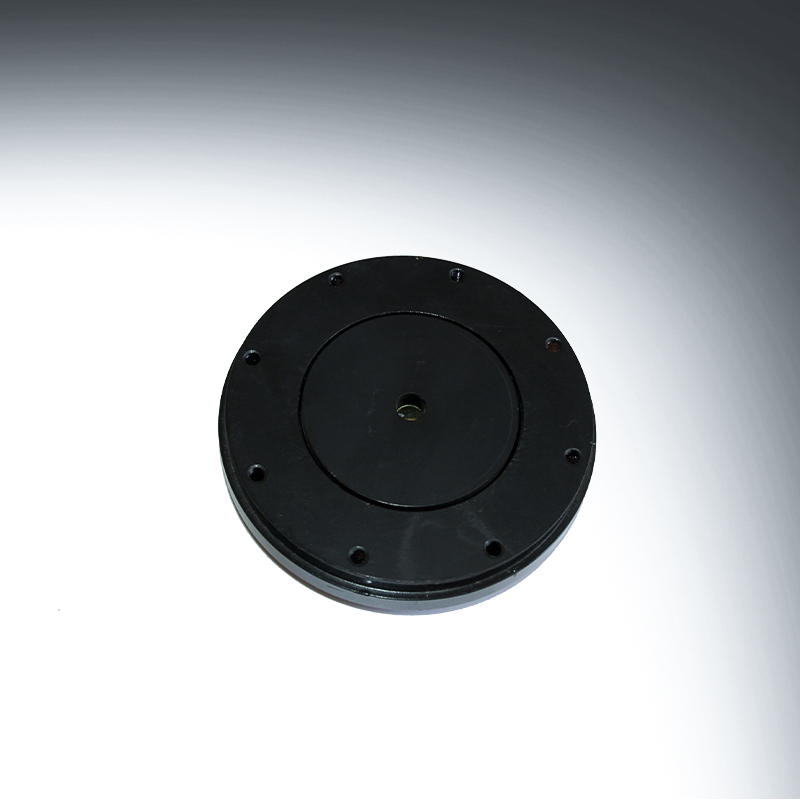

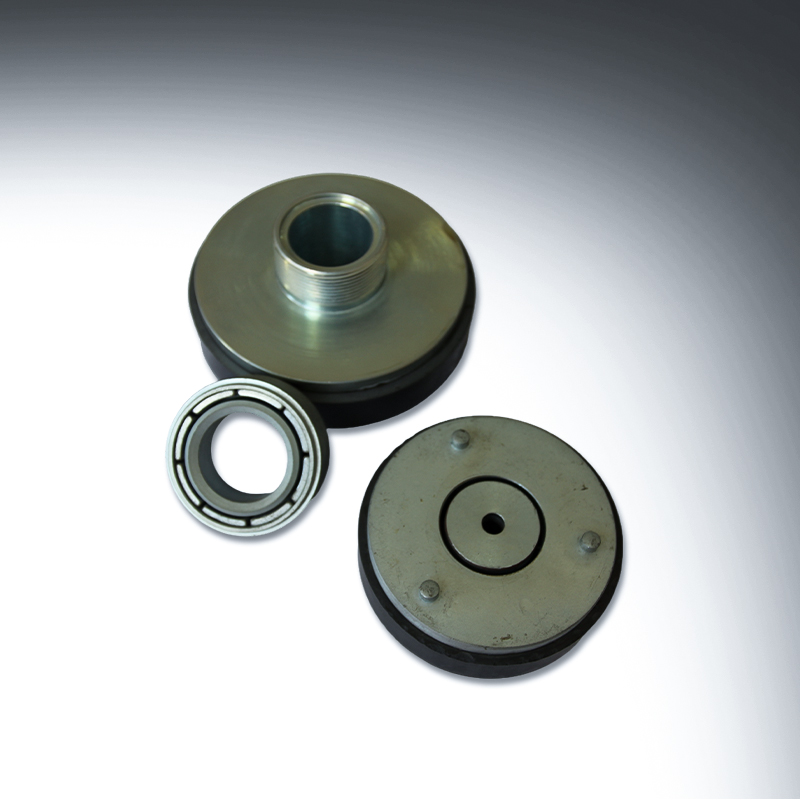

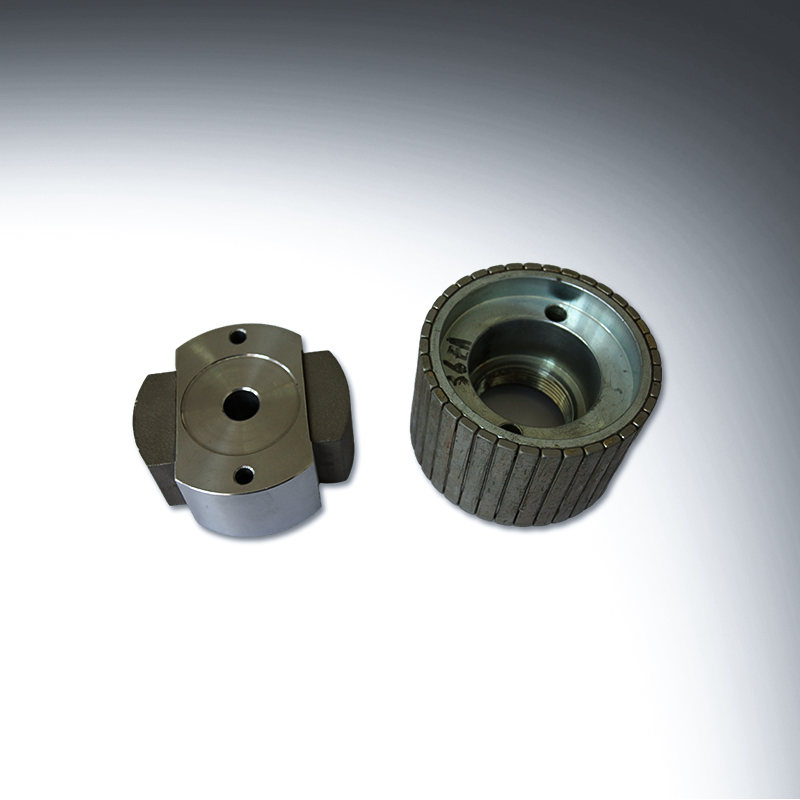

Magnet assemblies are permanent magnets bonded to other permanent magnets or to different carrier materials. Our team is mainly engaged in various permanent magnet couplings, magneto rotors, linear motor stators and halbach array magnetic assemblies.
The extremely precise positioning of the magnets and the very high forces associated with the bulky magnetized parts make the assembly of magnet assemblies a challenging task. For this process, we use our extensive experience in the design and manufacture of assembly tools as well as our expertise in selecting the appropriate bonding process.
Our manufacturing ranges from high-volume production of systems for the automotive industry to individual large components of small series of high-tech products and electric motors for medical use.
Our capabilities are in mold design, EDM, ID slicing and grinding, metal part machining, injection molding, aluminum die casting, bonding, magnetic characterization, system integration. We will analyze the possibility of quality issues including pole angle deviation, tilt angle deviation, cogging torque, pole peak non-uniformity, noise issues (harmonics), microcracks.
Grade & types of neodymium magnets
Grade
|
Remanence,Br
|
Coercivity,Hcb
|
Intrinsic Coercivity, Hcj
|
Maximum Energy Product, (BH)max
|
Working Temp.,
|
|
mT
|
kGs
|
kA/m
|
kOe
|
kA/m
|
kOe
|
kJ/m3
|
MGOe
|
Celsius ℃
|
N55
|
1470-1520
|
14.7-15.3
|
≥860
|
≥10.8
|
≥876
|
≥11
|
414-438
|
52-56
|
70
|
N52
|
1430-1480
|
14.3-14.8
|
≥860
|
≥10.8
|
≥876
|
≥11
|
398-422
|
50-53
|
70
|
N50
|
1400-1450
|
14.0-14.5
|
≥860
|
≥10.8
|
≥960
|
≥12
|
382-406
|
48-51
|
70
|
N48
|
1380-1420
|
13.8-14.2
|
≥836
|
≥10.5
|
≥900
|
≥11
|
366-390
|
46-49
|
80
|
N45
|
1380-1420
|
13.2-13.8
|
≥876
|
≥11.0
|
≥960
|
≥12
|
342-366
|
43-46
|
80
|
N42
|
1280-1320
|
12.8-13.2
|
≥923
|
≥11.6
|
≥960
|
≥12
|
318-342
|
40-43
|
80
|
N40
|
1250-1280
|
12.5-12.8
|
≥923
|
≥11.6
|
≥960
|
≥12
|
302-326
|
38-41
|
80
|
N38
|
1220-1250
|
12.2-12.5
|
≥899
|
≥11.3
|
≥960
|
≥12
|
287-310
|
36-39
|
80
|
N35
|
1170-1210
|
11.7-12.2
|
≥868
|
≥10.9
|
≥960
|
≥12
|
263-287
|
33-36
|
80
|
N33
|
1130-1180
|
11.3-11.8
|
≥836
|
≥10.5
|
≥960
|
≥12
|
247-270
|
31-34
|
80
|
N30
|
1080-1130
|
10.8-11.3
|
≥796
|
≥10
|
≥960
|
≥12
|
223-247
|
28-31
|
80
|
N52M
|
1430-1480
|
14.3-14.8
|
≥1035
|
≥13.0
|
≥1114
|
≥14
|
398-414
|
50-52
|
100
|
N50M
|
1400-1450
|
14.0-14.5
|
≥1035
|
≥13.0
|
≥1114
|
≥14
|
382-406
|
48-51
|
100
|
N48M
|
1360-1430
|
13.7-14.3
|
≥1027
|
≥12.9
|
≥1114
|
≥14
|
366-390
|
46-49
|
100
|
N45M
|
1320-0380
|
13.2-13.8
|
≥995
|
≥12.5
|
≥1114
|
≥14
|
342-366
|
43-46
|
100
|
N42M
|
1280-1320
|
12.8-13.2
|
≥955
|
≥12.0
|
≥1114
|
≥14
|
318-342
|
40-43
|
100
|
N40M
|
1250-1280
|
12.5-12.8
|
≥923
|
≥11.6
|
≥1114
|
≥14
|
302-326
|
38-41
|
100
|
N38M
|
1220-1250
|
12.2-12.5
|
≥899
|
≥11.3
|
≥1114
|
≥14
|
287-310
|
36-39
|
100
|
N35M
|
1170-1220
|
11.7-12.2
|
≥868
|
≥10.9
|
≥1114
|
≥14
|
263-287
|
33-36
|
100
|
N33M
|
1130-1180
|
11.3-11.8
|
≥836
|
≥10.5
|
≥1114
|
≥14
|
247-270
|
31-34
|
100
|
N30M
|
1080-1130
|
10.8-11.3
|
≥796
|
≥10
|
≥1114
|
≥14
|
223-247
|
28-31
|
100
|
N50H
|
1400-1450
|
14.0-14.5
|
≥1035
|
≥13.0
|
≥1274
|
≥16
|
382-406
|
48-51
|
120
|
N48H
|
1370-1430
|
13.7-14.3
|
≥1035
|
≥13.0
|
≥1274
|
≥16
|
366-390
|
46-49
|
120
|
N46H
|
1330-1380
|
13.3-13.8
|
≥1018
|
≥12.8
|
≥1274
|
≥16
|
350-374
|
44-47
|
120
|
N45H
|
1330-1380
|
13.3-13.8
|
≥1010
|
≥12.7
|
≥1353
|
≥17
|
342-366
|
43-46
|
120
|
N44H
|
1310-1360
|
13.1-13.8
|
≥1003
|
≥12.6
|
≥1353
|
≥17
|
326-358
|
42-45
|
120
|
N42H
|
1280-1320
|
12.8-13.2
|
≥995
|
≥12.5
|
≥1353
|
≥17
|
318-342
|
40-43
|
120
|
N40H
|
1250-1280
|
12.5-12.8
|
≥940
|
≥11.8
|
≥1353
|
≥17
|
302-326
|
38-41
|
120
|
N38H
|
1220-1250
|
12.2-12.5
|
≥899
|
≥11.3
|
≥1353
|
≥17
|
287-310
|
36-39
|
120
|
N35H
|
1170-1220
|
11.7-12.2
|
≥876
|
≥11.0
|
≥1353
|
≥17
|
263-287
|
33-36
|
120
|
N33H
|
1130-1180
|
11.3-11.8
|
≥844
|
≥10.6
|
≥1353
|
≥17
|
247-271
|
31-34
|
120
|
N30H
|
1080-1130
|
10.8-11.3
|
≥812
|
≥10.2
|
≥1353
|
≥17
|
223-247
|
28-31
|
120
|
Grade
|
Remanence,Br
|
Coercivity,Hcb
|
Intrinsic Coercivity, Hcj
|
Maximum Energy Product, (BH)max
|
Working Temp.,
|
|
mT
|
kGs
|
kA/m
|
kOe
|
kA/m
|
kOe
|
kJ/m3
|
MGOe
|
Celsius ℃
|
N48SH
|
1370-1430
|
13.7-14.3
|
≥1003
|
≥12.6
|
≥1600
|
≥20
|
366-390
|
46-49
|
150
|
N45SH
|
1320-1380
|
13.2-13.8
|
≥1003
|
≥12.6
|
≥1600
|
≥20
|
342-366
|
43-46
|
150
|
N44SH
|
1310-1350
|
13.1-13.5
|
≥1003
|
≥12.6
|
≥1600
|
≥20
|
334-358
|
42-45
|
150
|
N42SH
|
1280-1320
|
12.8-13.2
|
≥995
|
≥12.5
|
≥1600
|
≥20
|
318-342
|
40-43
|
150
|
N40SH
|
1250-1280
|
12.5-12.8
|
≥947
|
≥11.9
|
≥1600
|
≥20
|
302-326
|
38-41
|
150
|
N38SH
|
1220-1250
|
12.2-12.5
|
≥931
|
≥11.7
|
≥1600
|
≥20
|
287-310
|
36-39
|
150
|
N35SH
|
1170-1220
|
11.7-12.2
|
≥907
|
≥11.4
|
≥1600
|
≥20
|
263-287
|
33-36
|
150
|
N33SH
|
1130-1170
|
11.3-11.7
|
≥844
|
≥10.6
|
≥1600
|
≥20
|
247-271
|
31-34
|
150
|
N30SH
|
1080-1130
|
10.8-11.3
|
≥804
|
≥10.1
|
≥1600
|
≥20
|
223-247
|
28-31
|
150
|
N42UH
|
1280-1320
|
12.8-13.2
|
≥907
|
≥11.4
|
≥2000
|
≥25
|
318-342
|
40-43
|
180
|
N40UH
|
1240-1280
|
12.4-12.8
|
≥907
|
≥11.4
|
≥2000
|
≥25
|
302-326
|
38-41
|
180
|
N38UH
|
1220-1250
|
12.2-12.5
|
≥907
|
≥11.4
|
≥2000
|
≥25
|
287-310
|
36-39
|
180
|
N35UH
|
1180-1220
|
11.8-12.2
|
≥875
|
≥11.0
|
≥2000
|
≥25
|
263-287
|
33-36
|
180
|
N33UH
|
1130-1170
|
11.3-11.7
|
≥844
|
≥10.6
|
≥2000
|
≥25
|
247-271
|
31-34
|
180
|
N30UH
|
1020-1080
|
10.8-11.3
|
≥835
|
≥10.5
|
≥2000
|
≥25
|
223-247
|
28-31
|
180
|
N28UH
|
1050-1080
|
10.5-10.8
|
≥764
|
≥9.6
|
≥2000
|
≥25
|
207-239
|
26-30
|
180
|
N42EH
|
1280-1310
|
12.8-13.1
|
≥907
|
≥11.4
|
≥2388
|
≥30
|
320-340
|
38-41
|
200
|
N40EH
|
1240-1280
|
12.5-12.8
|
≥907
|
≥11.4
|
≥2388
|
≥30
|
302-326
|
38-41
|
200
|
N38EH
|
1220-1250
|
12.2-12.8
|
≥907
|
≥11.4
|
≥2388
|
≥30
|
287-310
|
36-39
|
200
|
N35EH
|
1170-1220
|
11.7-12.2
|
≥876
|
≥11.0
|
≥2388
|
≥30
|
263-287
|
33-36
|
200
|
N33EH
|
1130-1170
|
11.3-11.7
|
≥812
|
≥10.2
|
≥2388
|
≥30
|
247-271
|
31-34
|
200
|
N30EH
|
1080-1130
|
10.8-11.3
|
≥812
|
≥10.2
|
≥2388
|
≥30
|
223-247
|
28-31
|
200
|
N28EH
|
1040-1090
|
10.4-10.9
|
≥780
|
≥9.8
|
≥2400
|
≥30
|
207-231
|
26-29
|
200
|
N38AH
|
1220-1250
|
12.2-12.5
|
≥907
|
≥11.4
|
≥2706
|
≥34
|
287-310
|
36-39
|
240
|
N35AH
|
1170-1220
|
11.7-12.2
|
≥812
|
≥10.2
|
≥2785
|
≥35
|
263-287
|
33-36
|
240
|
N33AH
|
1130-1170
|
11.3-11.7
|
≥812
|
≥10.2
|
≥2785
|
≥35
|
247-271
|
31-34
|
240
|
N30AH
|
1080-1130
|
10.8-11.3
|
≥812
|
≥10.2
|
≥2785
|
≥35
|
223-247
|
28-31
|
240
|
* The temperature ratings are guideline values.
* The data of magnetic parameters and physical properties are given at room temperature (20℃).
* The actual maximum temperature and performance of magnets is also subject to magnet shape,
the ratio of length and diameter, coating and applications.
Physical Characteristics (Typical)
Characteristic
|
Symbol
|
Unit
|
Value
|
Density
|
D
|
g/cm
|
7.45-7.65
|
Vickers Hardness
|
Hv
|
D.P.N
|
620
|
Compression Strength
|
C.S
|
N/mm2
|
780
|
Coefcient of Thermal Expansion
|
C//
|
10-6/°C
|
3.4
|
CŁ
|
10-6/°C
|
-4.8
|
Electrical Resistivity
|
ƿ
|
µ Ω.cm
|
1.8x10 x^(-4)
|
Temperature coefcient of resistivity
|
α
|
10x^(-4)/°C
|
2
|
Electrical Conductivity
|
σ
|
kCal/(m.h.°C)
|
0.667
|
Thermal Conductivity
|
k
|
kCal/(kg.°C)
|
8.9551
|
Specifc Heat Capacity
|
c
|
kg/mm2
|
0.12
|
Tensile Strength
|
σUTS, or SU
|
Mpa
|
80
|
Young's Modulus
|
λ / E
|
10-12m2/N
|
0.16x1011
|
Flexural Strength
|
β
|
10-12m2/N
|
9.8
|
Compressibility
|
σ
|
10-12m2/N
|
9.8
|
Rigidity
|
E.I
|
N/m2
|
0.64
|
Poisson's Ratio
|
ν
|
|
0.24
|
Curie Temperature
|
Tc
|
°C
|
310-380
|
